Unipolar RO Water Filtration System 2T/H Industrial Purified Water Treatment Equipment
Production Description
This product includes three systems, namely:
the pretreatment system: including the raw water pressure pump, quartz sand filter, activated carbon filter, etc., used to remove suspended solids, color, odor, etc. from water.
The reverse osmosis system: mainly composed of high-pressure pump, reverse osmosis membrane component, pressure vessel, pipelines, valves, etc., to achieve water desalination and purification.
The post-treatment system: including pH adjustment, disinfection and sterilization equipment, to ensure stable water quality.
Parameter Table
| Model | Water Making Ability | Inlet Caliber | Effluent Caliber | Blowdown alCer | Size(mm) | Power |
| YSRO-0.5T | 0.5m3/h | DN20 | DN20 | DN15 | 1500×600×1500 | 1.3kw |
| YSRO-1T | 1m3/h | DN25 | DN25 | DN20 | 1700×600×1500 | 2.1kw |
| YSRO-2T | 2m3/h | DN32 | DN25 | DN20 | 2500×1000×1950 | 4.4kw |
| YSRO-3T | 3m3/h | DN40 | DN32 | DN25 | 2500×1200×2150 | 4.5kw |
| YSRO-5T | 5m3/h | DN50 | DN40 | DN32 | 2500×1350×2150 | 7.0kw |
| YSRO-8T | 8m3/h | DN50 | DN50 | DN40 | 3500×1500×2150 | 11kw |
| YSRO-10T | 10m3/h | DN50 | DN50 | DN40 | 3500×1600×2300 | 15kw |
Key Advantage
Compact structure, small footprint, flexible installation.
High quality pvc material, corrosion resistance, wear resistance.
High degree of automation, easy to operate, easy to maintain
Precautions for Use
1. Before operating the equipment, please ensure that you have fully understood the operating methods of the equipment and strictly follow the equipment operation manual for operation
2. During the operation, please always observe the operation status of the equipment. If any abnormalities are found, please stop the equipment in a timely manner and troubleshoot the problem
3. During the normal operation of the equipment, do not change the operating parameters arbitrarily to avoid affecting the working effect of the equipment and the water quality of the produced water
4. When the equipment is not in use for a long time, please perform timely maintenance and upkeep to extend its service life and ensure the purity of water quality

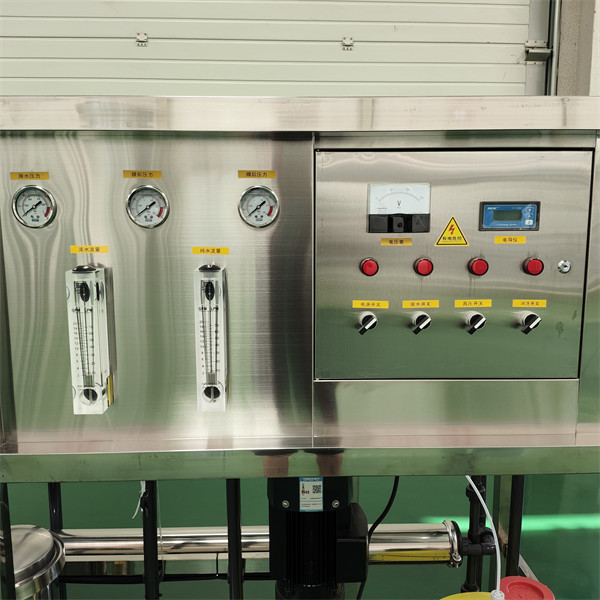

Product display
